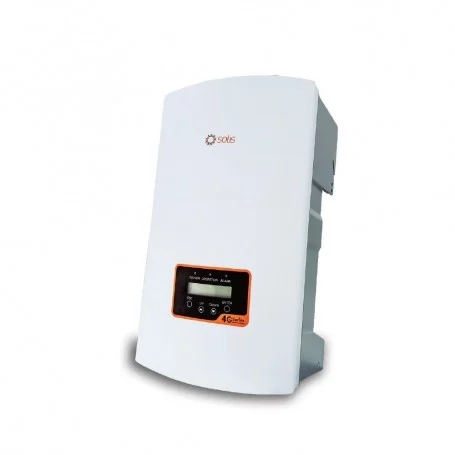

Solis 20kW S5 3fase 2MPPT - DC SOL-S5-GR3P-20K-DC

Type Inverter with SetApp function Style 3-phase inverter Manufacturing number SOL-S5-GR3P-20K-DC Wattage 20kW max. Efficiency of 98.7 Type II surge protection for DC and AC Wide voltage range - extremely low inrush voltage of 180 V and maximum PV input voltage of 1100 V 16A PV string input x 4 Maximum output power of 22 kW Maximum PV DC power of 30 kW Integrated AFCI (DC arc flash protection) IP66 protection class DC reverse polarity protection 5 year standard warranty Registration in SolisCloud to support remote updating and monitoring. NB! Approval for Belgium is pending. Ask for updates regarding the purchase approval! Manufacturer Product Number: SOL-S5-GR3P-20K-DC Weight: 22.94 kg Rated Power: 20,000 W Min PPT Voltage: 180V Max PPT voltage: 1,000 V DC Start-up voltage: 180V DC Shutdown Voltage: 160V Max Input Voltage: 1,100 V Max DC Power: 30,000W Max AC Power (5 Minutes): 22,000 W Surge AC Power (1 Second): 22,000 W Max DC Current: 64A Max DC Inputs: 4 Has DC Fuses: 0 Connector: MC4 Included Connectors: 8 Euro Efficiency: 98.1 % Transformer: None MPPT Quantity : 2 Integrated DC switch?: Yes Warranty: 5 years
